Vertical Type Mixer BV Series
Vertical type of BV blender, which machines is constructed with the vertical conveyor in the center of storage tank. Turning on the vertical conveyor, material will move from bottom to top through the screw conveyor, like fountain pouring, and then material sprinkled into the tank approached mixing.
-
-

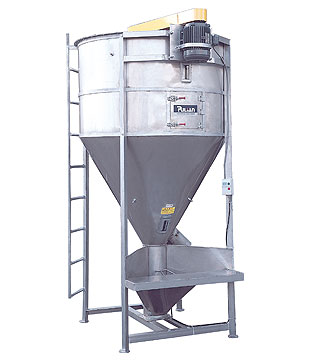

BV-50
- Power: 1 Hp.
- R.P.M.: 180 rpm.
- Machine Weight: 180 kgs.
- Machine Size: Ø550*1130 mm.
- Capacity: 50 Kg.
-
-
BV-100
- Power: 2 Hp.
- R.P.M.: 180 rpm.
- Machine Weight: 260 kgs.
- Machine Size: Ø750*1130 mm.
- Capacity: 100 Kg.
-
-
BV-500
- Power: 3 Hp.
- R.P.M.: 280 rpm.
- Machine Weight: 650 kgs.
- Machine Size: Ø1170*2520 mm.
- Capacity: 500 Kg.
-
-
BV-1000
- Power: 5 Hp.
- R.P.M.: 280 rpm.
- Machine Weight: 900 kgs.
- Machine Size: Ø1480*2950 mm.
- Capacity: 1000 Kg.
-
-
BV-1500
- Power: 5 HP.
- R.P.M: 280 rpm.
- Capacity: 1500 kg.
- Machine Weight: 900 kgs.
- Machine Size: 1480*3250 mm.
-
-
BV-2000
- Power: 7.5 Hp.
- R.P.M.: 280 rpm.
- Machine Weight: 1100 kgs.
- Machine Size: Ø1680*3430 mm.
- Capacity: 2000 Kg.
-
-
BV-3000
- Power: 10 HP.
- R.P.M: 280 rpm.
- Capacity: 3000 kg.
- Machine Weight: 900 kgs.
- Machine Size: 1930*3110 mm.
-
-

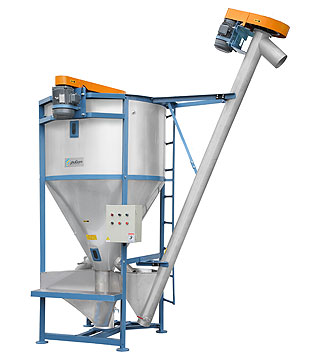

BV-Screw conveyor
